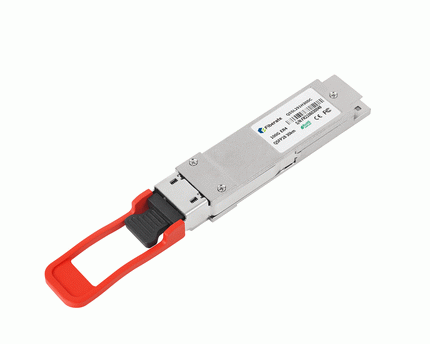

100G QSFP28

Fiberate’s 100G QSFP28 series includes SR4,CWDM4,LR4 AND ER4 lite,using LC or MPO receptacle,with the features of QSFP28 MSA Compliant,IEEE802.3bm Compliant,low power consumption and high reliability,suitable for 100G data center network and OTN network.
Standards and Regulatory Compliance:
RoHS Compliant
Compliant to IEEE802.3ba,IEEE802.3bm and 100G LR4
Compliant to SFF-8436
Compliant to QSFP28 MSA(multi-source agreement)
Compliant to CWDM4 MSA
Compliant to 4WDM MSA

Aplication: 100G Ethernet/Data center/Infiniband QDR/Fiber Channel
Part Number Package Style Wavelength TX output(dBm) RX Sensitivity(dBm) Reach Interface Fiber Type Datasheet
QSMM851H01DC QSFP28 SR4 850nm -8.4~2.4 -10.3 150M MPO MM
QSSL291H10DC QSFP28 LR4 LAN WDM -4.3~4.5 -10.6 10KM LC SM
QSSL291H30/40DC QSFP28 ER4 LAN WDM -2.5~6.5 -18 30/40KM LC SM
