40G QSFP+

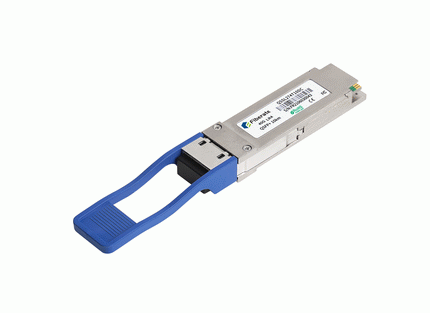

Fiberate’s 40G QSFP+ series optical transceivers includes 150m/400m SR4, 2km/10km/30km LR4,using LC or MPO receptacle, with the features of IEEE802.3bm, SFF-8436 Compliant, low power consumption and high reliability, suitable for 40G Ethernet and data center.
Standards and Regulatory Compliance:
RoHS Compliant
Compliant to IEEE802.3ba
Compliant to SFF-8436
Compliant to QSFP+ MSA(multi-source agreement)

Aplication: 40G Ethernet/Data Center/Infiniband QDR/Fiber Channel/Switches and Router
Part Number Package Style Wavelength TX output(dBm) RX Sensitivity(dBm) Reach Interface Fiber Type Datasheet
QSMM854T01DC QSFP+ SR4 850nm -7.6~0.5 -9.5 100M MPO MM
QSMM854T01DC QSFP+ SR4 850nm -7.6~0.5 -9.5 150M MPO MM
QSSL274T10DC QSFP+ LR4 CWDM -7~2.3 -11.5 10KM LC SM
QSSL274T40DC QSFP+ ER4 CWDM -3.7~4.5 -15.8 40KM LC SM
